Key Highlights
1. Controlled Deflection (≤ L/200) — Stable camera images under design wind loads.
2. Inherent C3 – C4 Resistance & Non-Magnetic — No rust staining in C3 – C4 environments; non-magnetic material prevents EMI in sensitive sites.
3. Lightweight Construction — Enables manual erection by small crews, eliminating crane rental costs.
4. Modular Slip-Joint Design — Telescopic sections maximize container utilization and shipping efficiency.
5. Fully Recyclable Aluminum & Custom Finishes — Sustainable lifecycle with Mill Finish, Anodized, or RAL Powder-Coated options.
Engineered for standard payloads and general-purpose surveillance networks, our Standard Series aluminum poles provide a reliable, corrosion-resistant alternative to traditional carbon steel. Made from 6061-T6 extruded aluminum, the natural oxide passivation layer delivers dependable corrosion resistance in inland cities, industrial parks, and mild-coastal locations (C3-C4 environments) without hot-dip galvanizing or powder coating.
Engineering Note: Designed specifically for standard PTZ and bullet cameras. For heavy-payload multi-sensor arrays, radar integrations, or harsh C5-M marine ports, please specify our Heavy-Duty Aluminum series.
| Parameter | Standard Aluminum Pole Specification |
| Basic Wind Speed | 35 m/s (3sec gust, approx. 126 km/h) @ 10 m height |
| Pole Height | 4 m – 10 m (Modular Sectional Standard Series) |
| Material | 6061-T6 Extruded Aluminum Alloy |
| Material Density | 2.70 g/cm³ (approx. 1/3 of steel) |
| Rated Payload | ≤ 50 kg (under ≤ L/200 deflection criteria; payload decreases as pole height increases) |
| Wall Thickness | 3mm – 6mm (Customized per height & load) |
Surface Finish | Anodized (≥15 μm per ASTM B580 Class 1) OR Powder-Coated (≥60 μm, UV-resistant polyester) |
Supported by an ISO 9001:2015 quality management system, we can adapt pole design, manufacturing quality control, corrosion protection, and technical documentation to project-specific standards and local requirements, supporting overseas project approval, procurement, and acceptance.
Structural Design & Wind Load Verification: Structural calculations can be performed in accordance with EN 40 / EN 1993, AASHTO, applicable AS/NZS standards, SASO requirements, or other project-specified codes. Design verification can incorporate site wind speed, equipment loads, mounting height, and environmental conditions.
Welding & Manufacturing Control: Welding procedures and quality control can be adapted to applicable EN 1090 execution requirements and ISO 3834 welding quality requirements, with corresponding process, inspection, and documentation controls implemented as required by the project.
Corrosion Protection: Hot-dip galvanizing and coating systems can be configured according to the project environment and required service life. Treatments can be specified to ISO 1461, ASTM A123/A123M, or other project requirements for standard outdoor, coastal, high-humidity, and high-salinity environments.
Engineering Documentation Support: Project documentation can include structural calculation reports, shop drawings, material certificates, welding records, galvanizing or coating inspection reports, dimensional inspection records, and factory quality documentation for client, consultant, or EPC review.
Multi-Market Project Support: We support project requirements across Europe, North America, the Middle East, and Asia-Pacific. Applicable design standards, inspection requirements, and document packages can be defined according to the project location and technical specification.
1. Structural Performance & Camera Stability
Many lightweight poles suffer excessive sway under wind, triggering blurry surveillance footage and project acceptance risks. Fabricated from 6061‑T6 extruded aluminium (typical yield strength: 240‑276 MPa), each unit features an optimized cross‑section verified through finite‑element structural analysis. A controlled deflection of ≤L/200 delivers consistent stiffness under design wind loads, eliminating footage blur and safeguarding project handover.
2. Low Lifecycle Maintenance & Special‑Site Compatibility
While hot‑dip‑galvanized carbon steel suits general deployments, it requires rigorous surface preparation within C3‑C4 corrosive zones. Featuring an anodized finish with 500–800 hours of salt-spray resistance and non-magnetic, EMI-free properties, these poles excel in airports and sensitive-equipment sites, significantly minimizing long-term maintenance overhead.
3. Reduced Installation & Labor Costs
Heavy carbon-steel poles demand expensive mobile cranes and introduce severe on-site safety risks. Weighing roughly one-third of steel alternatives, our 6061-T6 aluminum poles enable manual installation by small crews for standard heights. This eliminates heavy-crane dependency, cutting deployment costs and mitigating on-site safety liabilities.
4. Optimized Freight & Logistics
Full-length poles create inefficient container utilization and drive up per‑unit ocean freight. Segmented slip‑joint poles with precision‑machined inner surfaces support high‑tolerance nesting, allowing more units per 40HQ container to lower logistics expenditures for global integrators. Precision-machined anti-slip joints maintain full structural rigidity following field assembly.
5. Sustainability & ESG Compliance
Public-sector and enterprise tenders increasingly demand traceable eco-friendly materials. Manufactured from fully recyclable aluminum and offered with custom aesthetic finishes to match municipal or corporate visual standards, these poles fully support ESG-oriented tender documentation.

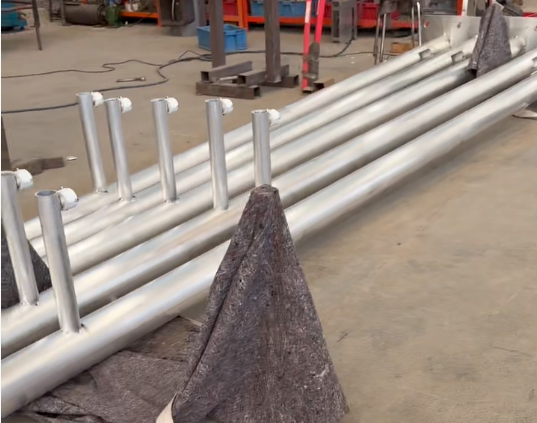

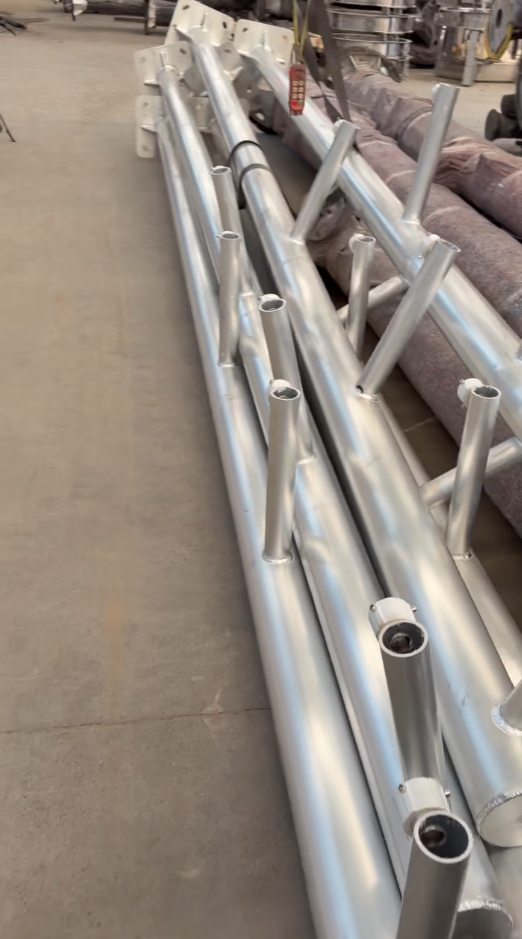

Our standard series aluminum poles feature pre-drilled Mounting interfaces and universal brackets, ensuring seamless integration with mainstream global brands:
Cameras: Bullet, PTZ, Dome (Standard Interface), Laser PTZ.
Sensors: Environmental, Traffic & Methane Gas Detection.
Enclosures: Universal Security Power Supplies & Battery Enclosures.
🔧 Precision Fit: Custom hole drilling, crossarms, and flange patterns are available upon request based on CAD templates. Precision laser-cut top brackets can be tailored to specific camera footprints (e.g., Axis, Hanwha, Bosch), eliminating on-site drilling and accelerating installation.
Comparison | Standard Aluminum Surveillance Pole | Heavy-Duty Aluminum Surveillance Pole |
| Material Grade | 6061-T6 (Standard Series) | 6082-T6 (Heavy-Section Extrusion) |
| Rated Payload | ≤ 50 kg | ≤ 150 kg |
| Wall Thickness | 3mm – 6mm (optimized) | 6mm – 12mm+ (heavy-section extrusion) |
| Typical Scenarios | City roads, industrial parks, urban perimeters, mild-salt-spray shorelines | Seaports, substations, airport boundaries, radar-sensor arrays, typhoon-prone zones |
| Engineering Docs | Standard Condition Calculation Sheets | Customized Project-Specific Wind-Load Report |
Trusted by global partners for general-purpose aluminum surveillance deployments:
Urban Road Surveillance Project: 6m Standard Aluminum Poles, 210 Units, Municipal Project
Industrial Park Perimeter Security: 8m Standard Aluminum Poles, 90 Units, Suburban Industrial Zone
Smart Community Surveillance: 4m Standard Aluminum Poles, 240 Units, Residential Compound
⚡ Galvanic Corrosion Prevention: Prevent direct metal-to-metal contact between the aluminum pole body and stainless-steel/carbon-steel fasteners or brackets. Install non-conductive isolating gaskets/washers at every dissimilar-metal joint, especially in coastal salt-spray locations.
Service: We can supply pre-installed nylon/EPDM isolation gaskets for all mounting brackets upon request to guarantee long-term corrosion safety.
💧 Drainage & Sealing: Keep base drainage openings unobstructed; hand-hole covers and seals must remain intact. Never bury flange plates underground.
🛡️ Surface & Coating Integrity: Protect anodized/powder-coated aluminum surfaces from mechanical impact damage during handling and erection. Apply compatible touch-up coatings promptly to any scratched or chipped areas.
🔌 Grounding Requirement: Complete proper grounding and equipotential bonding in compliance with local electrical codes.
🏗️ Foundation Rules: Anchor bolts and concrete foundations must satisfy local wind-load requirements. Erect poles only after concrete has fully cured.
We provide custom wind-load calculation reports, 2D CAD drawings, installation manuals, and tender technical documents to support your global project approvals and customs clearance.
For general-purpose technical handbooks and safety guidelines, please visit our Download Center→
🚀 Rapid Delivery: typically ship within 3–5 weeks.
💰 Volume Pricing: Tiered pricing structures available for bulk orders.
📦 Export-Grade Packaging: Moisture-proof and shock-resistant packaging optimized for safe container loading.
📊 Real-Time Tracking: Dedicated project managers providing regular production progress updates.
Q1: What is the main difference between Standard Aluminum and Heavy-Duty Aluminum poles?
A: Standard aluminum poles utilize thinner wall sections designed for moderate wind speeds and payloads up to 50 kg, making them ideal for C3-C4 inland and mild-coastal sites. Heavy-Duty aluminum poles feature heavier wall extrusions to withstand higher wind speeds, heavier multi-sensor payloads, and C5-M marine-grade environments.
Q2: Can standard aluminum poles be installed at coastal locations?
A: They are suitable for mild-coastal C3-C4 sites without persistent heavy salt spray. For open-ocean ports or C5-M heavy-marine projects, please select our Heavy-Duty Aluminum series.
Q3: What payload can this standard aluminum pole support?
A: It is rated for up to 50 kg under design wind-speed conditions. The actual allowable payload decreases as pole height increases. Standard-condition calculation sheets are available upon request.
Q4: What does your warranty cover for standard aluminum poles?
A: Our structural warranty covers the base tube as well as slip-joint and weld-joint integrity under specified design wind-speed and payload limits. The warranty excludes mechanical impact damage, improper site installation, overloading beyond rated parameters, or surface-finish wear resulting from extreme environmental exposure.
Q5: Can you supply Mill Test Certificates for the aluminum raw materials?
A: Yes, EN 10204-3.1 material test certificates for 6061-T6 aluminum extrusion stock can be provided upon customer request.
Q6: How does aluminum compare to stainless steel (SS304) for surveillance poles?
A: Both materials offer inherent corrosion resistance without requiring hot-dip galvanizing. Aluminum (6061-T6) is significantly lighter (approx. 1/3 the weight of stainless steel), making it much easier to handle and install without cranes. SS304 stainless steel offers higher structural stiffness and is better suited for heavier payloads and taller heights. For standard payloads (≤50 kg) in C3-C4 environments, aluminum provides a more cost-effective and logistically efficient solution. For C5-M marine environments, both SS304 and standard aluminum series are unsuitable—please select our Heavy-Duty SS316L or Heavy-Duty Aluminum series instead.
Q: My project has standard wind loads and lightweight fixtures. Do you offer a more cost-effective alternative to T6?
A: Yes. For low-to-medium height applications (typically under 8 meters) and standard wind conditions, we highly recommend our Light-Duty 6063-T5 Aluminum Poles.
Specifications are typical values for reference only under standard conditions — not a guarantee. Final performance shall be determined by project design calculations and factory test reports. Consult a local engineer before specifying.
Unsure whether Light-Duty, Standard, or Heavy-Duty aluminum fits your project?
