Product Overview
Engineered for single‑/dual‑camera off‑grid surveillance deployments across rural roads, remote construction sites, and inland perimeter projects. Optimized for a PV array plus 1‑2 surveillance cameras, this cost‑effective structural solution delivers compliant wind‑load performance and proven C3‑C4 corrosion protection. Solar‑ready pre‑fabricated interfaces remove field modification work for system integrators.
Engineering Note: This standard series is optimized for PV + 1‑2 cameras. For radar, 5G small‑cell, or multi‑sensor heavy‑payload requirements, select our Heavy‑Duty series. Pole‑only supply; solar panels, battery bank, controllers, and cameras are sourced separately by contractors.
What This Pole Does — and What It Doesn't
This page covers the structural pole only — the standard steel foundation that carries your solar PV array, cameras, and sensors. If you're looking for a fully integrated solar power system (panels, batteries, charge controllers, and power distribution), we offer a complete turnkey solution — click here to explore →
1. Right-Sized Structure for Solar-Exclusive Loads
Specially engineered for off-grid solar monitoring scenarios and optimized for standard PV + 1–2 lightweight cameras. It delivers standardized 35 m/s wind-gust resistance and a 50 kg rated load capacity, perfectly meeting rural and remote-area project specifications without redundant structural margins.
2. Cost-Balanced C3 or C4 Atmospheric Corrosion Design Tailored for inland and mild‑coastal environments to deliver stable C3 or C4 corrosion protection, avoiding unnecessary cost premiums from over‑specified C5‑M marine coatings for non‑extreme projects. |
|

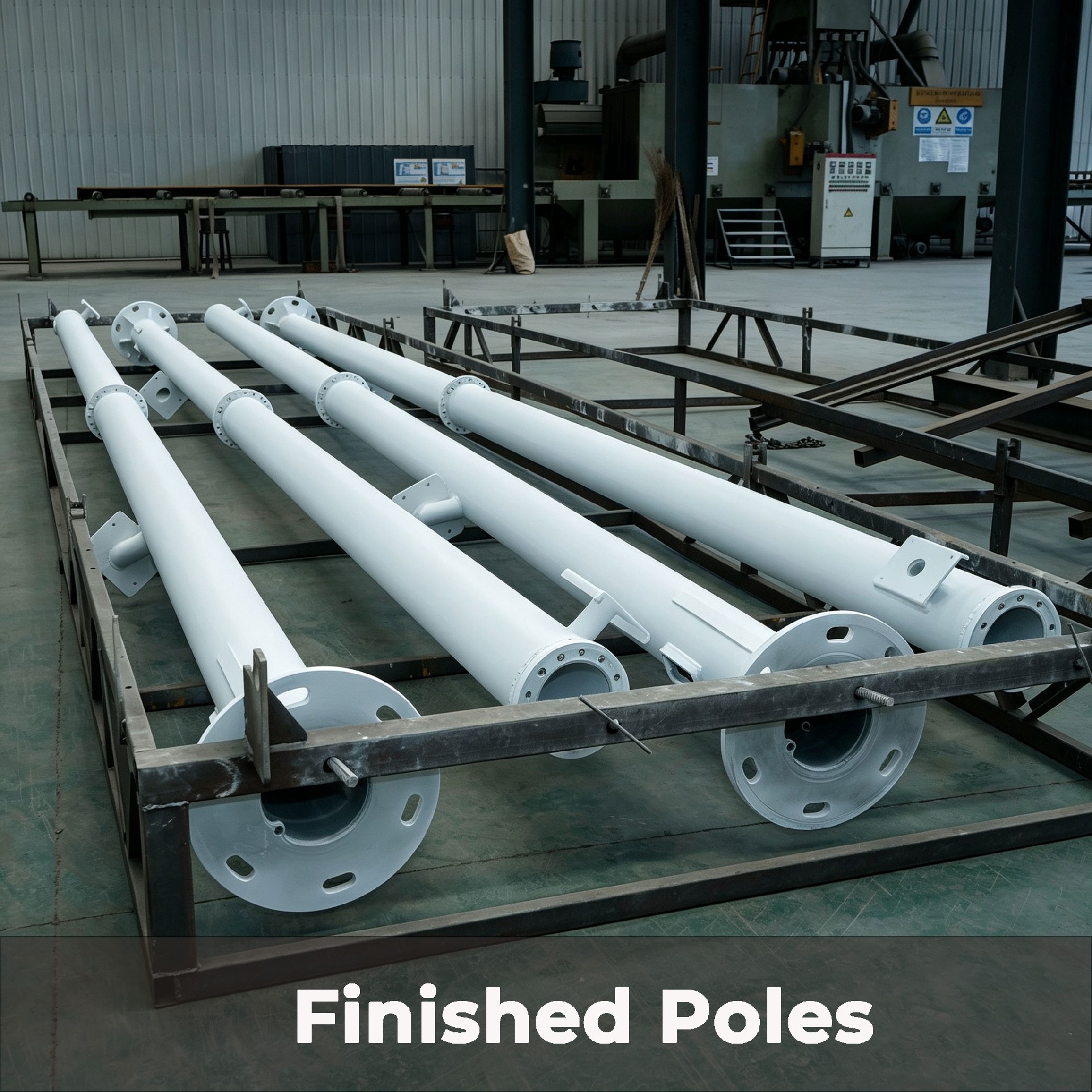

3. Pre-Engineered Off-Grid Solar Integration Interface Features factory‑preset solar mounting brackets and internal wiring channels for fast, non‑destructive third‑party PV system integration. |
|
| Parameter | Standard‑Series Specification |
| Height | 4 – 12 m, customizable |
| Wall Thickness | 3mm – 6mm (Customized per height & load) |
| Rated Total Payload | Up to 50 kg (PV array + 1‑2 cameras / small sensors) |
| Supported Equipment | PV array + single/dual surveillance cameras |
| Material | Q235B Carbon Steel or SS304L Stainless Steel (material selected per project environment) |

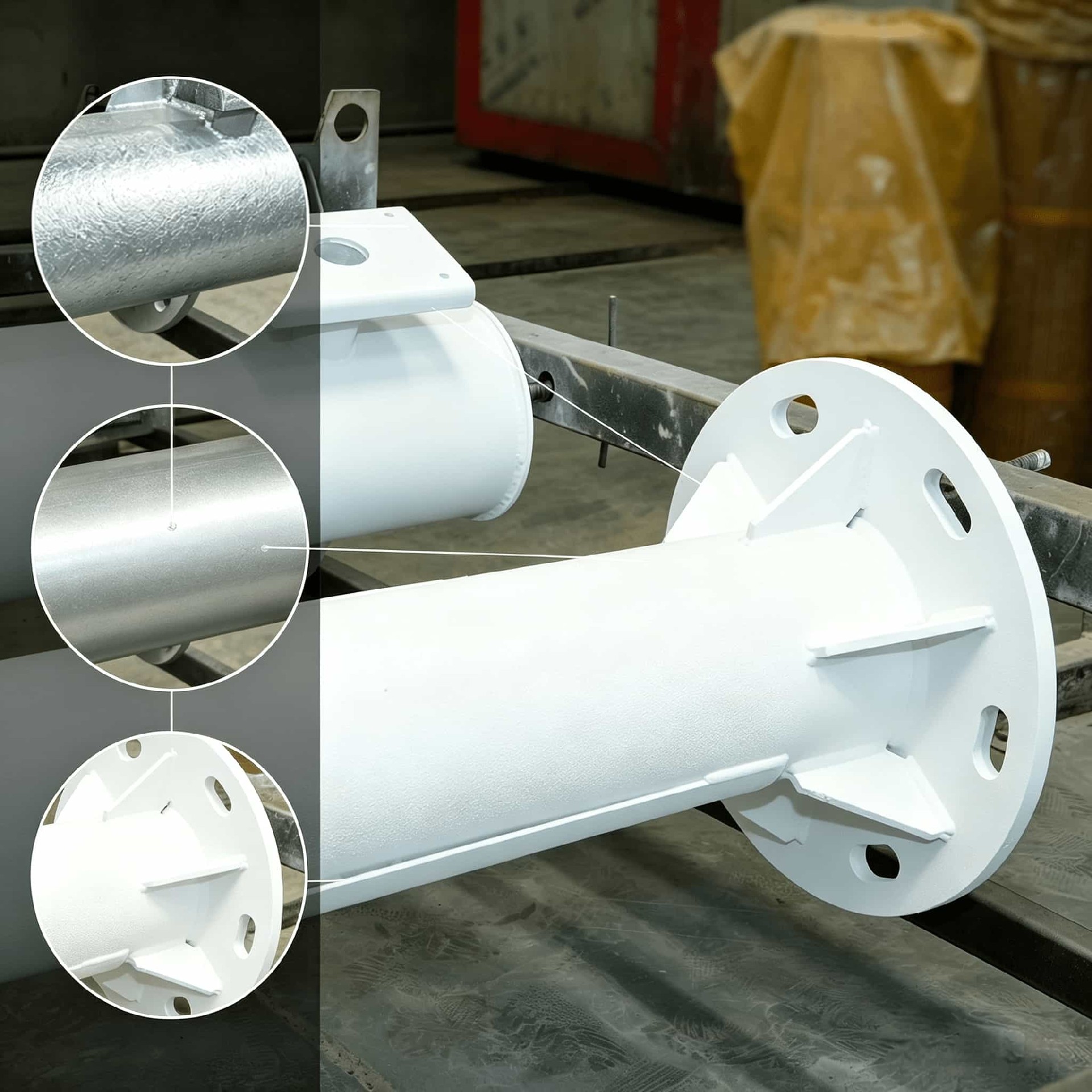

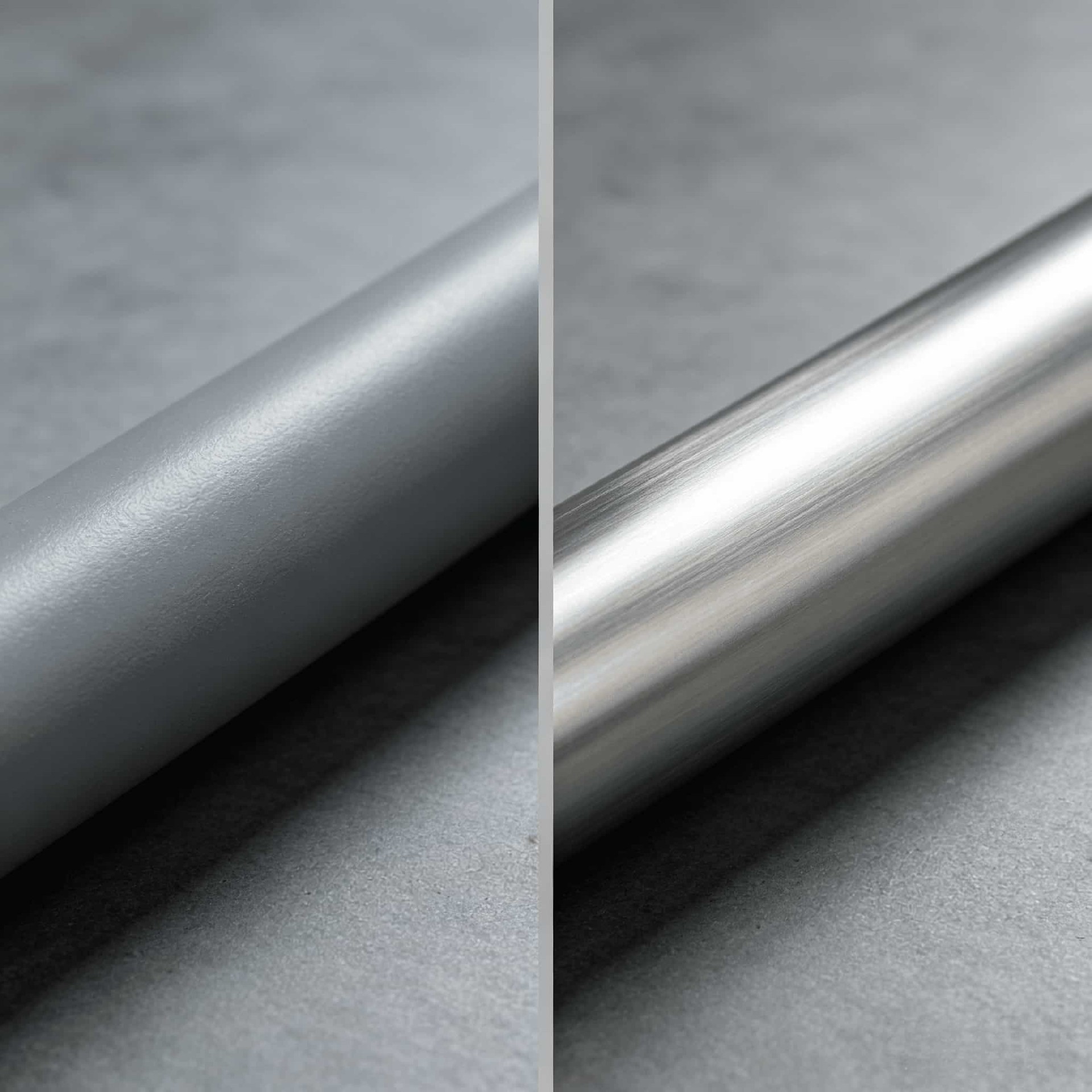

| Surface Finish | Hot-dip galvanized + powder coating (Carbon Steel) / brushed + passivated (Stainless Steel) |
| Solar Interface | Pre‑welded PV mounting seats + internal cable conduit |
| Notes: Dimensions, payload, and corrosion performance are project‑specific, subject to site wind‑load calculation. All specifications are for reference only. | |
 | Material | Surface Treatment | Recommended For |
| Q235B CS | Hot-dip galvanized + powder coating | Inland rural roads, cost‑sensitive general‑purpose projects | |
| SS304 | Brushed + passivated | Mild‑coastal low‑salt‑spray locations |
Supported by an ISO 9001:2015 quality management system, we can adapt pole design, manufacturing quality control, corrosion protection, and technical documentation to project-specific standards and local requirements, supporting overseas project approval, procurement, and acceptance.
Structural Design & Wind Load Verification: Structural calculations can be performed in accordance with EN 40 / EN 1993, AASHTO, applicable AS/NZS standards, SASO requirements, or other project-specified codes. Design verification can incorporate site wind speed, equipment loads, mounting height, and environmental conditions.

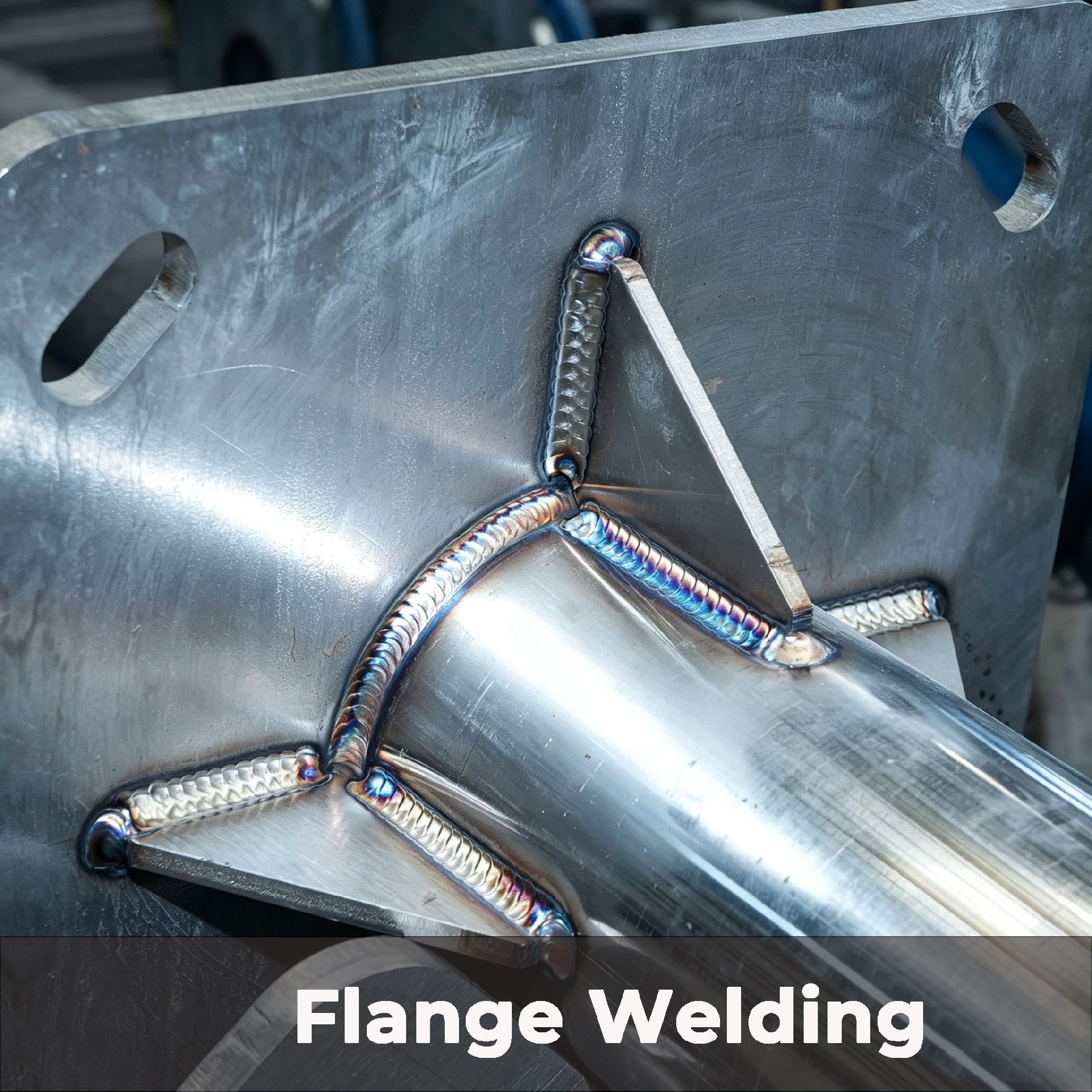

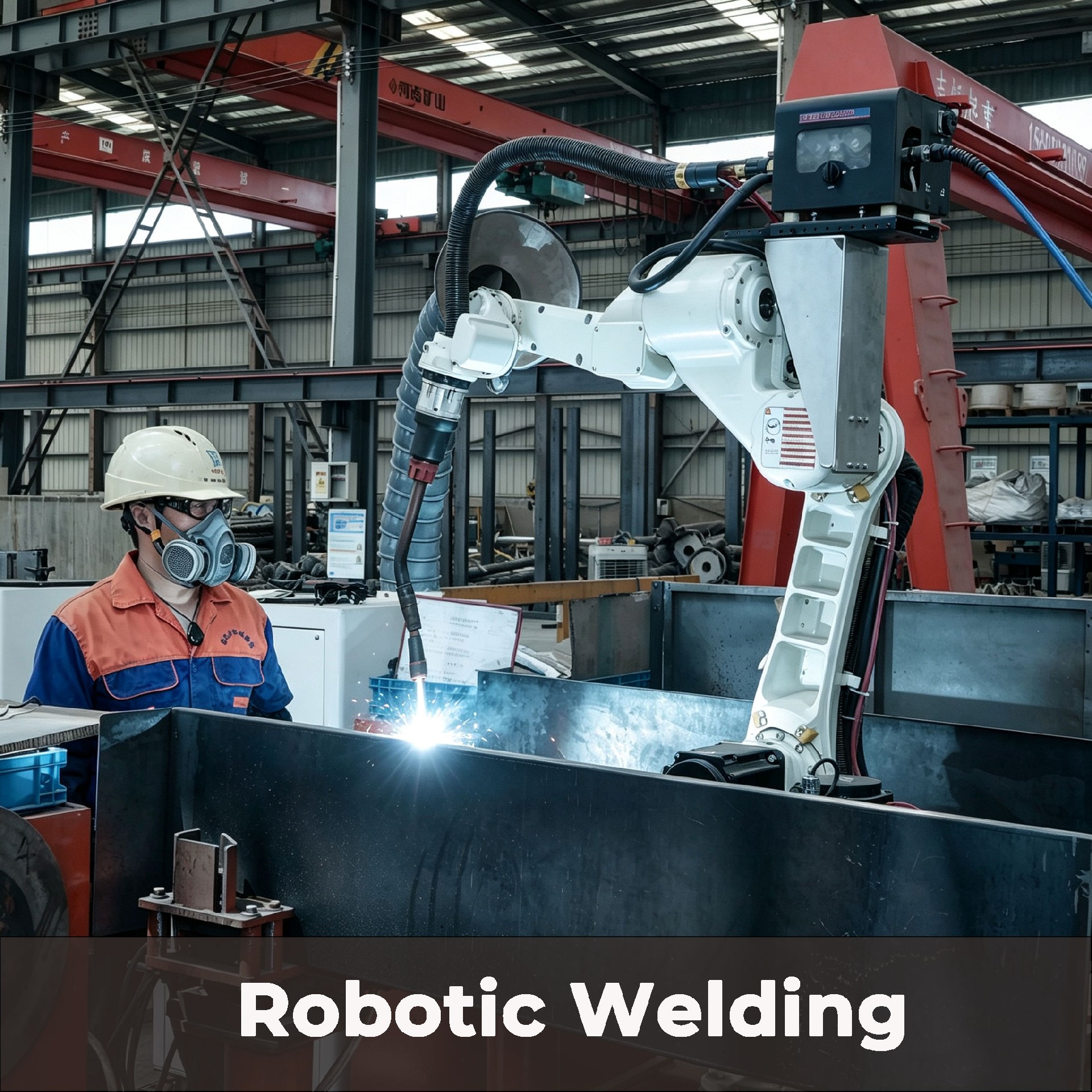

Welding & Manufacturing Control: Welding procedures and quality control can be adapted to applicable EN 1090 execution requirements and ISO 3834 welding quality requirements, with corresponding process, inspection, and documentation controls implemented as required by the project.
Corrosion Protection: Hot-dip galvanizing and coating systems can be configured according to the project environment and required service life. Treatments can be specified to ISO 1461, ASTM A123/A123M, or other project requirements for standard outdoor, coastal, high-humidity, and high-salinity environments.
Engineering Documentation Support: Project documentation can include structural calculation reports, shop drawings, material certificates, welding records, galvanizing or coating inspection reports, dimensional inspection records, and factory quality documentation for client, consultant, or EPC review.
Multi-Market Project Support: We support project requirements across Europe, North America, the Middle East, and Asia-Pacific. Applicable design standards, inspection requirements, and document packages can be defined according to the project location and technical specification.
Many general‑purpose surveillance poles are built for universal heavy‑duty requirements, resulting in unnecessary material waste and higher procurement costs for light‑to‑medium off‑grid solar surveillance deployments. This pole is purpose‑calibrated for typical project wind‑gust and payload conditions, delivering adequate structural capacity without excess structural reserve.
For inland and mild‑coastal environments, many buyers must pay for over‑specified marine‑grade anti‑corrosion treatments that exceed local atmospheric requirements. Using Sa 2.5 surface preparation combined with duplex hot‑dip galvanizing and powder coating, this pole delivers reliable protection under C3 or C4 environmental classes — offering durable, cost‑efficient corrosion resistance aligned with real‑world site conditions.
Field welding or post‑drilling modifications can damage protective coatings and bring additional construction risks and delays. All solar mounting brackets and internal cable routing channels are pre‑fabricated and pre‑positioned at the factory, allowing integrators to proceed directly with PV hardware installation — no on‑site cutting, welding, or drilling required.
|
|
|
|
|
|
Pre-drilled mounting interfaces and universal brackets ensure seamless integration with mainstream global brands:
Cameras: Bullet, PTZ, Dome (Standard Interface), Laser PTZ.
Sensors: Environmental, Traffic & Methane Gas Detection.
Enclosures: Universal Security Power Supplies & Battery Enclosures.
🔧 Precision Fit: Custom hole drilling, crossarms, and flange patterns are available upon request based on CAD templates. Precision laser-cut top brackets can be tailored to specific camera footprints (e.g., Axis, Hanwha, Bosch), eliminating on-site drilling and accelerating installation.
The pole is pre-engineered for third-party off-grid solar power systems.
| Structural & Mechanical Interfaces (Included) | Electrical & PV Components (By Others) |
Pre-welded solar mounting points | Solar panels & racking |
| Internal Cable conduit & entry points | MPPT charge controller |
| Structural load allowance (Wind/Payload) | Lithium battery bank |
| Waterproof equipment mounting box | Inverter & Surveillance Camera |
Comparison | Heavy-Duty Series | Standard Series |
| Load Class | Multi‑load: radar / 5G / meteorological instruments | PV array + single/dual cameras, small sensors |
| Applicable Wind Speed | Up to 49 m/s (3‑sec gust, approx.177 km/h) - project - dependent | Up to 35 m/s (3‑sec gust, approx.126 km/h) - project - dependent |
| Wall Thickness | Up to 16 mm | 3 – 6 mm |
| Corrosion Grade | C3‑C5‑M configurable via surface‑finish; SS316L for heavy coastal exposure | C3‑C4 standard; C5‑M available as a surface‑finish upgrade |
| Typical Scenarios | Seaports, petrochemical, 5G/radar, typhoon zones | Rural roads, remote sites, temporary sites |
| Material Options | Q355B Carbon Steel / SS316L | Q235B Carbon Steel / SS304 |

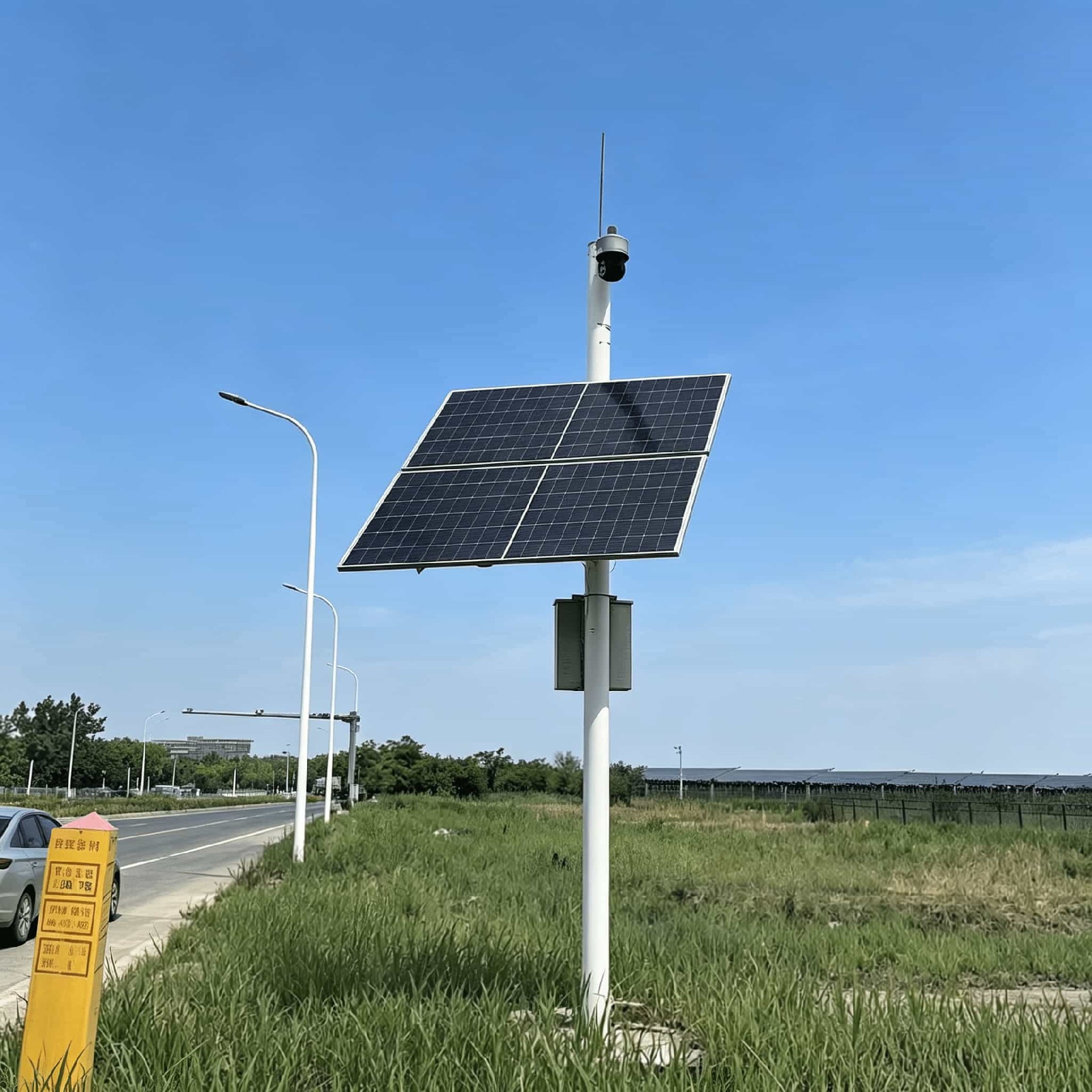

Rural State‑Road Surveillance: 6 m Standard Poles + PV Kits, 180 Units, inland highway project

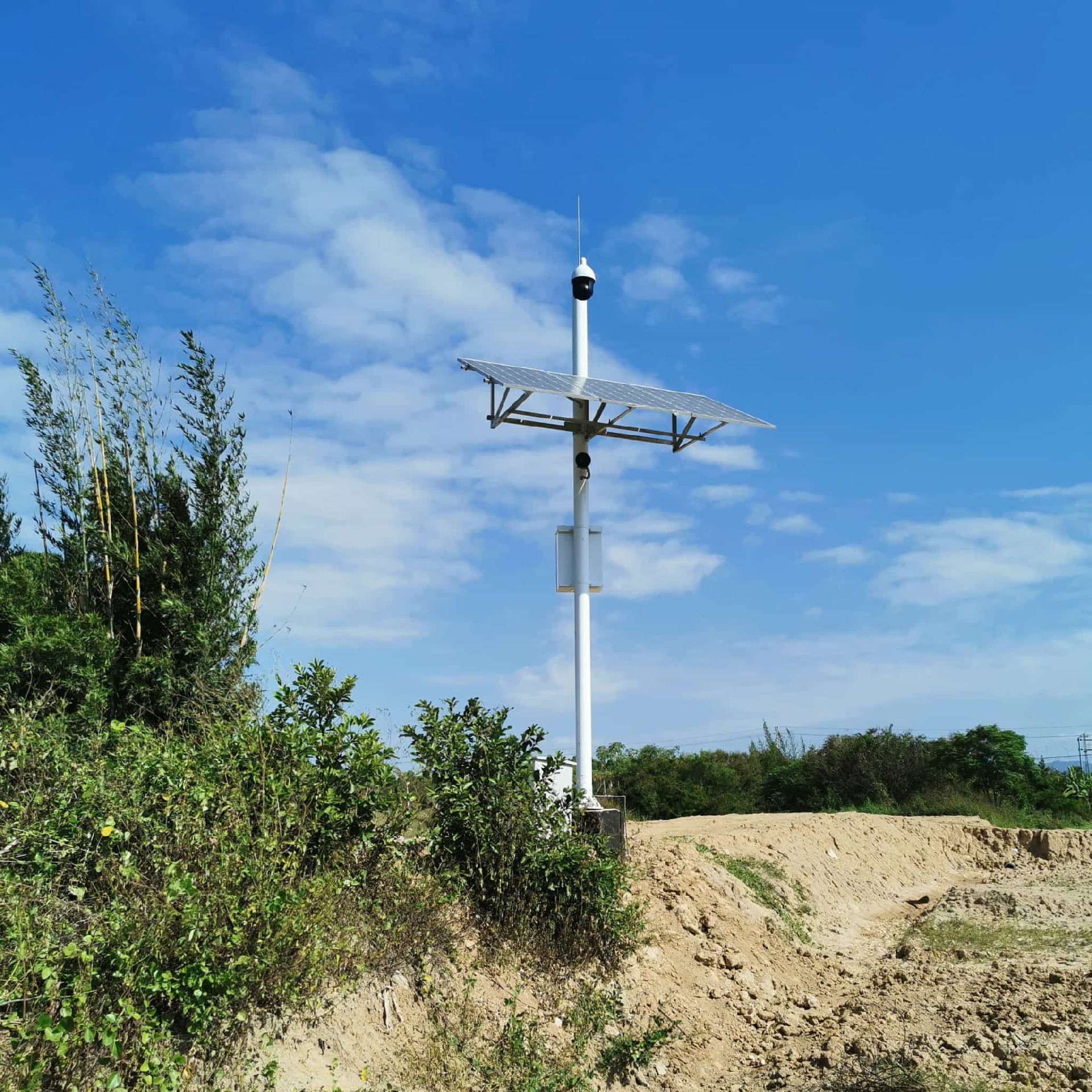

Construction‑Site Temporary Security: 4 m Standard Poles, 120 Units, remote off‑grid compound

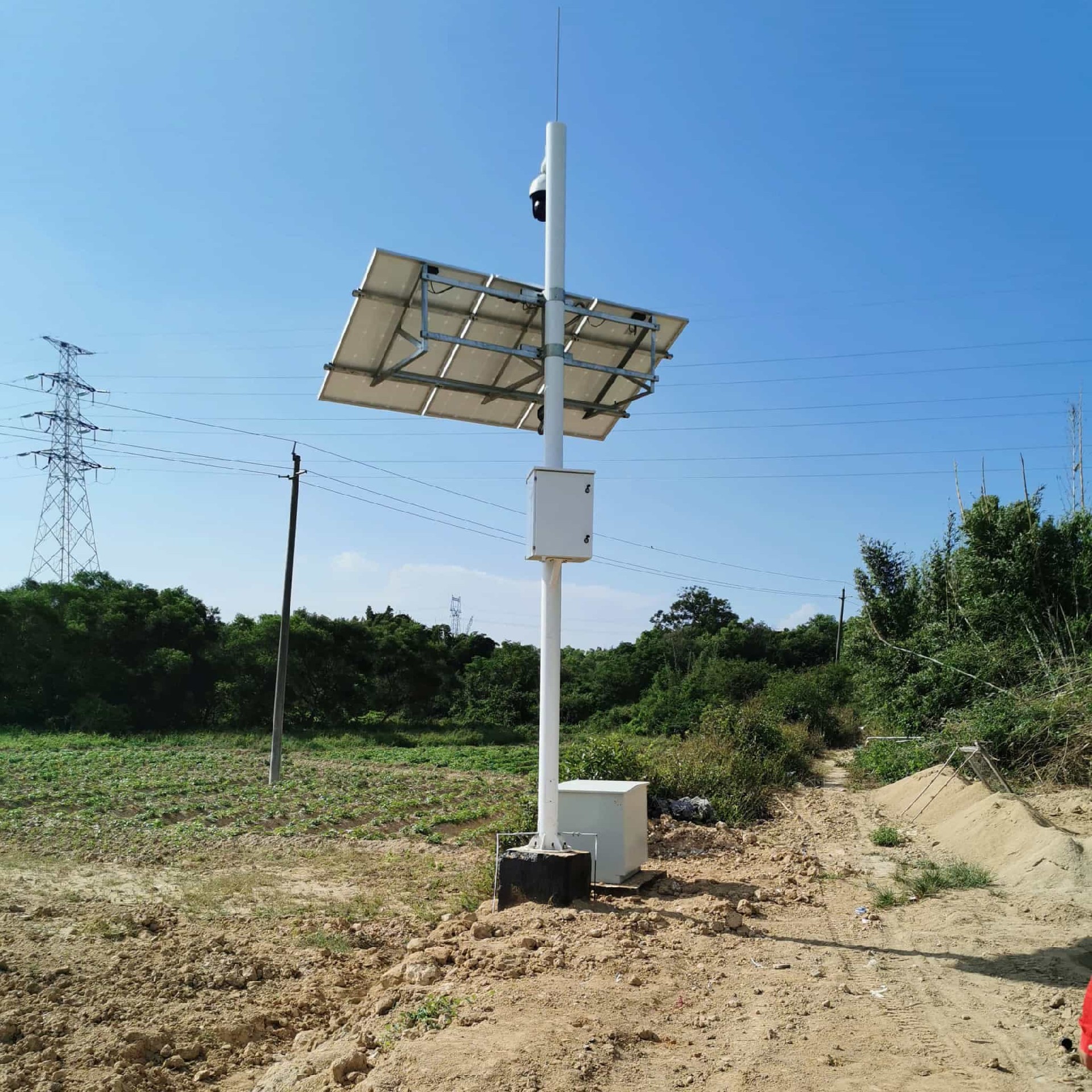

Inland Farm‑Area Perimeter Monitoring: 5 m Standard Q235B poles, 75 Units
⚡ Galvanic Corrosion Prevention: Install non-conductive isolating gaskets at every dissimilar-metal joint, especially in coastal salt-spray locations.
💧 Drainage & Sealing: Keep base drainage openings unobstructed; hand-hole covers and seals must remain intact. Never bury flange plates underground.

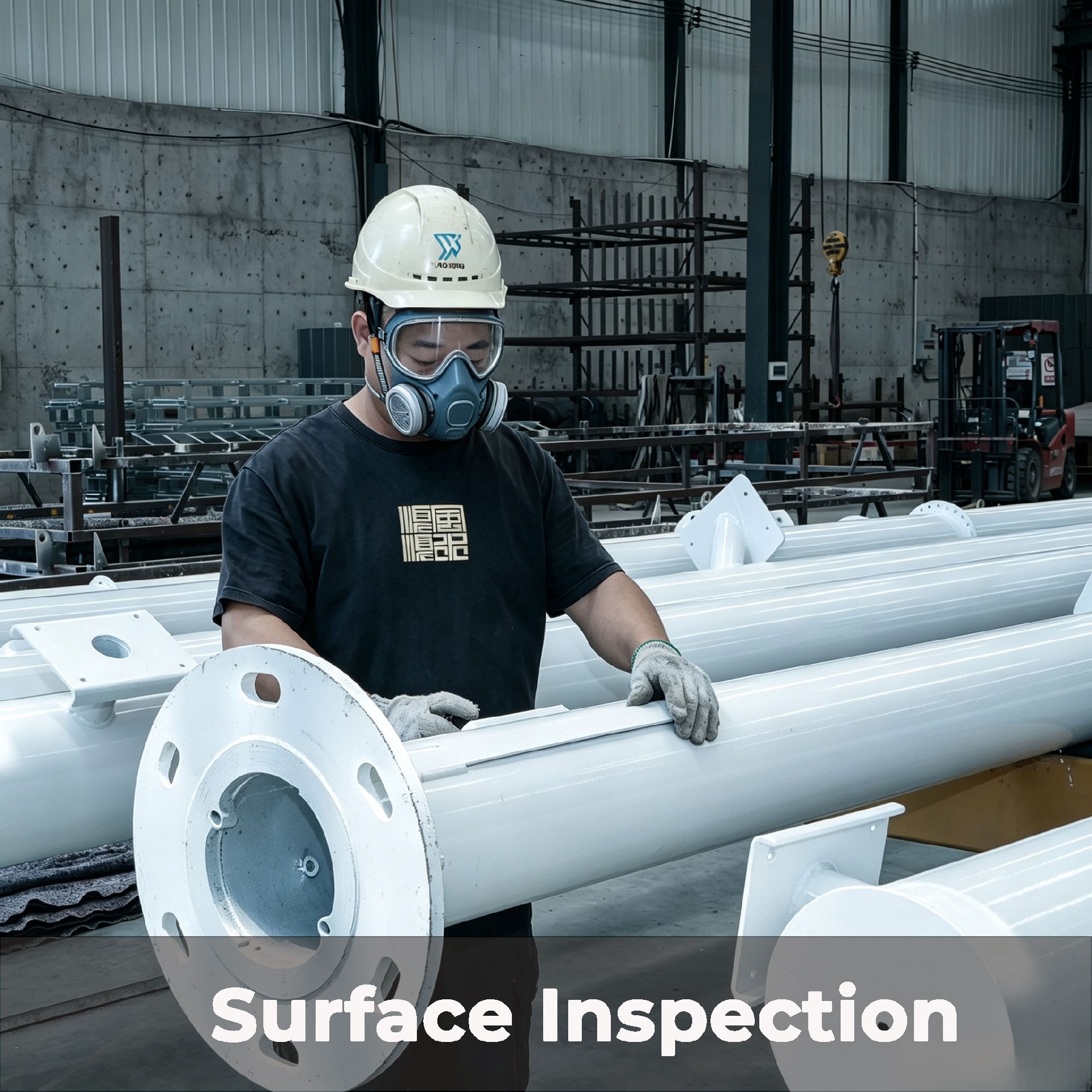

🛡️ Surface & Coating Integrity: Protect hot-dip galvanized + powder-coated (CS) or brushed/passivated (SS) surfaces from mechanical impact damage during handling and erection. Apply compatible touch-up coatings promptly to any scratched or chipped areas.
🔌 Grounding Requirement: Complete proper grounding and equipotential bonding in compliance with local electrical codes.
🏗️ Foundation Rules: Anchor bolts and concrete foundations must satisfy local wind-load requirements. Erect poles only after concrete has fully cured.
We provide custom wind-load calculation reports, 2D CAD drawings, installation manuals, and tender technical documents to support your global project approvals and customs clearance.
For general-purpose technical handbooks and safety guidelines, please visit our Download Center→
🚀 Rapid Delivery: Typically ship within 3–5 weeks.
💰 Volume Pricing: Tiered pricing structures available for bulk orders.
📦 Export-Grade Packaging: Moisture-proof and shock-resistant packaging optimized for safe container loading.
📊 Real-Time Tracking: Dedicated project managers providing regular production progress updates.
Q1: What types of monitoring equipment is your standard version solar monitoring pole suitable for?
A: Our standard version solar monitoring pole (bare pole) is designed for light to medium-duty monitoring equipment, including but not limited to:
- Standard PTZ (Pan-Tilt-Zoom) cameras
- Bullet cameras
- Small network cameras
- Environmental sensors
- Other low-power, lightweight IoT devices
If you plan to install heavier equipment, such as large radar systems, 5G base station equipment, or multi-camera arrays, please consider our heavy-duty series products to ensure structural safety and stability.
Q2: What are the load-bearing capacity and wind resistance rating of this standard version monitoring pole?
A: Our standard version solar monitoring poles (bare poles) are engineered to support light to medium equipment loads. Their wind resistance has been calibrated based on typical site conditions and is sufficient to handle most common low- to moderate wind speed environments.
Please note: To provide the most accurate load-bearing and wind resistance data, we strongly recommend providing the total weight of the equipment you plan to install and the specific geographical location of your project (to allow us to assess local extreme wind speeds and environmental conditions) when you inquire or place an order. We will then provide you with detailed technical specifications and safety recommendations based on this information.
Q3: What does "bare pole" mean in this context? What other accessories do I need to purchase?
A: "Bare pole" means we provide the main pole structure without any attached accessories. You will receive a high-quality, specification-compliant metal pole.
You may need to procure or inquire with us about the following accessories based on your specific project needs:
- Camera mounting bracket/base (compatible with your camera model)
- Solar panel mounting bracket/mounting system
- Battery box/energy storage system
- Controller
- Cables and connectors
- Foundation mounting hardware (e.g., anchor bolts, concrete foundation materials, depending on installation method and ground conditions)
- Grounding wire
We are happy to provide recommendations and procurement information for related accessories to ensure your system can operate completely and efficiently.
Q4: What material is used for this standard version monitoring pole? What is the surface treatment process?
A: Our standard version solar monitoring poles (bare poles) are typically manufactured using high-strength galvanized steel to ensure durability, corrosion resistance, and structural stability.
The surface treatment is usually hot-dip galvanization, which is a highly effective rust prevention measure. This significantly extends the pole's service life in outdoor environments and resists corrosion from rain, salt spray, and other elements.
Q5: Is the installation of this standard version monitoring pole complex? Are specialized tools required?
A: The standard version monitoring pole is designed for ease of installation. While installation requires basic engineering knowledge and operational skills, it generally does not require highly specialized professional tools.
Tools you may need include:
- Wrenches and sockets (for tightening bolts)
- Drilling tools (if fixing to a concrete foundation)
- Measuring tools (e.g., level)
- Safety equipment (e.g., ladders, safety harnesses)
We typically provide detailed installation instruction manuals to guide you through the basic installation steps. For complex installation environments or to ensure the highest safety standards, we recommend hiring experienced local installation teams.
Q6: What standard pole heights and diameters do you offer? Are customizations available?
A: We offer a comprehensive range of standard pole heights from 4 meters to 12 meters, covering the requirements of most common monitoring deployments. Diameters vary according to load-bearing and stability needs at each height.
Yes, we support a certain degree of customization. If you have specific height, diameter, or other structural requirements, please do not hesitate to contact us.
Specifications are typical values for reference only under standard conditions — not a guarantee. Final performance shall be determined by project design calculations and factory test reports. Consult a local engineer before specifying.
